Macro 900 Water Quality System

The Macro 900 Water Quality System is the precise, rugged and customisable multi-parameter water quality monitoring system for groundwater, surface water, aquaculture and environmental monitoring.

Designed for the water quality professional, the Macro 900 is a complete monitoring system built to withstand the harshest environments and most demanding measurement requirements. Key features include:

  • IP67 Macro 900 meter with 3D GPS receiver and 1,000 result data log
  • Choice of standard probes with key parameters included
  • Optional optical and electrochemical probes to extend and customise your monitoring system.

Building your own Macro 900 Water Quality System is simplicity itself and the range of accessories and options available guarantee the system can be adjusted to match future needs.


Waterproof Meter with GPS
IP67 battery powered meter with 1000 result data log and three dimensional GPS for precise result location data.

USB Connectivity with Macro 900 Link Software
Download results via the dedicated software provided with seamless integration with Microsoft Excel and Google Maps/Google Earth for intuitive data presentation

Choice of Macro Accessory Probes
Choose from either the MAP 2000 or the MAP 2100 to add depth measurement to the standard parameter list of pH, ORP, conductivity, TDS, salinity, seawater specific gravity, resistivity and optical Dissolved Oxygen

Add Optional Probes if Required
With one channel available for ion selective electrodes and one channel available for optical probes, both the MAP 2000 and MAP 2100 can be customised to exact requirements and swapped in the field.

Supplied in an IP67 Hard Case
Protect and transport the Macro 900 Water Quality System with maximum security with the high specification case including space for accessories such as calibration solutions.

Full Range of Accessories
Calibration solutions for all probes plus unique MacroCal solution for field calibration of pH, conductivity and zero turbidity to maintain your Macro 900 WQS in the field.

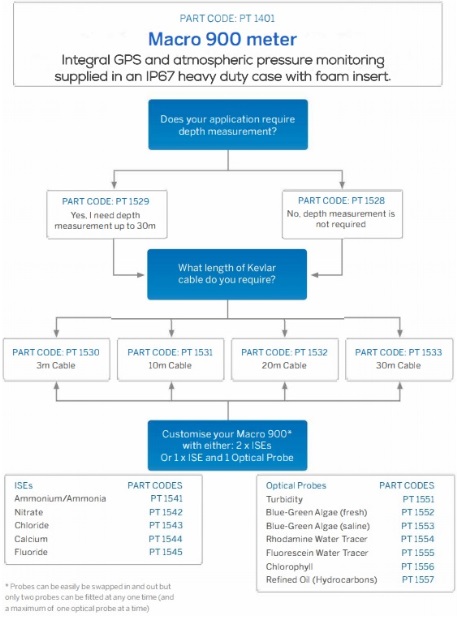

Macro 900 Water Quality System, Hard Case      PT 1401

Macro 900 Water Quality System, No Case         PT 1402

Macro Accessory Probe (MAP) 2000                   PT 1528

Macro Accessory Probe (MAP) 2100                   PT 1529

3 meter cable for MAP 2000/2100                     PT 1530

10 meter cable for MAP 2000/2100                    PT 1531

20 meter cable for MAP 2000/2100                   PT 1532

30 meter cable for MAP 2000/2100                   PT 1533

Macro 900 Meter with integral GPS and atmospheric pressure monitoring, Macro 900 Link software CD, USB cable, screwdriver, quick release lanyard, 5 AA batteries and quick start  manual supplied in an IP67 heavy duty case with foam insert.

PT 1401 Macro 900 Water Quality System, Hard Case

Macro 900 Meter with integral GPS and atmospheric pressure sensors, Macro 900 Link software, USB cable, quick release lanyard, 5 AA batteries and quick start manual

PT 1402 Macro 900 Water Quality System, No Case

MAP 2000 including probes/sensors for conductivity, TDS, resistivity, salinity, seawater specific gravity, Dissolved Oxygen (optical), pH, ORP and temperature. Supplied with MacroCal solution and filling solutions. Select cable length required to connect to Macro 900 Meter.

PT 1528 Macro Accessory Probe (MAP) 2000

MAP 2100 including probes/sensors for conductivity, TDS, resistivity, salinity, seawater specific gravity, depth, Dissolved Oxygen (optical), pH, ORP and temperature. Supplied with MacroCal solution and filling solutions. Select cable length required to connect to Macro 900 Meter.

PT 1529 Macro Accessory Probe (MAP) 2100

3 meter cable with Kevlar reinforcement and high-integrity waterproof connectors

PT 1530 3 meter cable for MAP 2000/2100

10 meter cable with Kevlar reinforcement and high-integrity waterproof connectors

PT 1531 10 meter cable for MAP 2000/2100

20 meter cable with Kevlar reinforcement and high-integrity waterproof connectors

PT 1532 20 meter cable for MAP 2000/2100

30 meter cable with Kevlar reinforcement and high-integrity waterproof connectors

PT 1533 30 meter cable for MAP 2000/2100

Display

LCD screen with backlight (activated by keystroke)

User Interface

On screen prompts available in English, French and Spanish (German on request), nine rubberised navigation keys

PC Interface

USB (cable provided)

GPS Receiver

12 channel with integral antenna, ±10m in three dimensions

Atmospheric Pressure Sensor

150 – 1150 mb ± 1 mb

Size (W x L x H)

90 x 180 x 39mm

Weight

450 g

Power Supply

5 x 1.5V (AA) batteries

Operating Temperature

-20 to 70°C

IP Rating

IP67

Macro Accessory Probe (MAP) 2000

Parameters Included

Conductivity, TDS, resistivity, salinity, seawater specific gravity, dissolved oxygen (optical), pH, ORP and temperature

Immersion Depth

75mm min. 30m max.

Size (L x Diam)

290mm x 48mm

Weight

725 g

Operating Temperature

-5 to 50°C

IP Rating

IP68

Macro Accessory Probe (MAP) 2100

Parameters Included

Conductivity, TDS, resistivity, salinity, seawater specific gravity, dissolved oxygen (optical), pH, ORP and temperature, depth

Immersion Depth

75mm min. 30m max.

Size (L x Diam)

290mm x 48mm

Weight

725 g

Operating Temperature

-5 to 50°C

IP Rating

IP68

Parameter Specification

Dissolved Oxygen (Optical)Range0 – 500.0% / 0 – 50.00 mg/l
Resolution0.1% / 0.01 mg/l
Accuracy0 – 200%: ± 1% of reading.
200% – 500%: ± 10%
Conductivity  (EC)Range0 – 200 mS/cm (0 – 200,000 µS/cm)
Resolution3 Auto-range scales: 0 – 9999 µS/cm,
10.00 – 99.99 mS/cm,
100.0 – 200.0 mS/cm
Accuracy± 1% of reading or ± 1 µS/cm if greater
 TDSRange0 – 100,000 mg/l (ppm)
Resolution2 Auto-range scales: 0 – 9999 mg/l,
10.00 – 100.00 g/l
Accuracy± 1% of reading or ± 1 mg/l if greater
ResistivityRange5 Ωcm – 1 MΩcm
Resolution2 Auto-range scales: 5 – 9999 Ωcm,
10.0 – 1000.0 KΩcm
Accuracy± 1% of reading or ± 1 Ωcm if greater
SalinityRange0 – 70 PSU / 0 – 70.00 ppt (g/kg)
Resolution0.01 PSU / 0.01 ppt
Accuracy± 1% of reading or ± 0.1 unit
if greater
Seawater Specific GravityRange0 – 50 st
Resolution0.1 st
Accuracy± 1.0 st
pHRange0 – 14 pH / ± 625 mV
Resolution0.01 pH / ± 0.1 mV
Accuracy± 0.01 pH / ± 5mV
ORPRange± 2000 mV
Resolution0.1 mV
Accuracy± 5 mV



PT 1454 Electrode Storage Solution3M KCl, supplied in a 25ml bottle for pH/ORP electrode storage
PT 1455 pH 7 Buffer Solution, 300mlpH 7.00 buffer, 300ml in wide neck bottle for MAP insertion.
PT 1456 pH 7 Buffer Solution, 600mlpH 7.00 buffer, 600ml in wide neck bottle for MAP insertion
PT 1457 pH 4 Buffer Solution, 300mlpH 4.01 buffer, 300ml in wide neck bottle for MAP insertion
PT 1458 pH 4 Buffer Solution, 600mlpH 4.01 buffer, 600ml in wide neck bottle for MAP insertion
PT 1468 Zero Oxygen Solution, 150mlZero oxygen solution, 150ml in wide neck bottle for MAP insertion
PT 1469 Zero Oxygen Solution, 600mlZero oxygen solution, 600ml in wide neck bottle for MAP insertion
PT 1470 MacroCal Calibration Solution, 300mlCombined pH 7 buffer, conductivity standard (2570µS/cm) and zero turbidity standard, 300ml, supplied in wide neck bottle for MAP insertion.
PT 1471 MacroCal Calibration Solution, 600mlCombined pH 7 buffer, conductivity standard (2570µS/cm) and zero turbidity standard, 600ml, supplied in wide neck bottle for MAP insertion

Ion Selective Electrodes

PT 1541 Ammonia/Ammonium Ion Selective Electrode0 – 9,000 mg/l N, 2 Auto-range scales: 0.00 – 99.99 mg/l N, 100.0 – 8,999.9 mg/l N
PT 1542 Nitrate Ion Selective Electrode0 – 30,000 mg/l N, 2 Auto-range scales: 0.00 – 99.99 mg/l N, 100.0 – 29,999.9 mg/l N
PT 1543 Chloride Ion Selective Electrode0 – 20,000 mg/l Cl, 2 Auto-range scales: 0.00 – 99.99 mg/l Cl, 100.0 – 19,999.9 mg/l Cl
PT 1544 Calcium Ion Selective Electrode0 – 2,000 mg/l CaCO3, 2 Auto-range scales: 0.00 – 99.99 mg/l, 100.0 – 1,999.9 mg/l
PT 1545 Fluoride Ion Selective Electrode0 – 1,000 mg/l F, 2 Auto-range scales: 0.00 – 99.99 mg/l F, 100.0 – 999.9 mg/l F



Optional Optical Probes

PT 1551 Turbidity Optical Probe0 – 3000 NTU, 2 Auto-range scales: 0.00 – 99.9 NTU, 100 – 3000 NTU
PT 1552 Blue Green Algae (Phytocyanin, fresh water) Optical Probe0 – 300,000 cells/ml
PT 1553 Blue Green Algae (Phytoerythrin, marine water) Optical Probe0 – 200,000 cells/ml
PT 1554 Rhodamine WT Dye Optical Probe0 – 500 μg/l (ppb)
PT 1555 Fluorescein Dye Optical Probe0 – 500 μg/l (ppb)
PT 1556 Chlorophyll Optical Probe0 – 500 μg/l (ppb)
PT 1557 Refined Oils (Hydrocarbons) Optical Probe0 – 10,000 μg/l (ppb)
